MT-5
Next-generation multi-mission EOD robotic system
Rugged and operationally validated

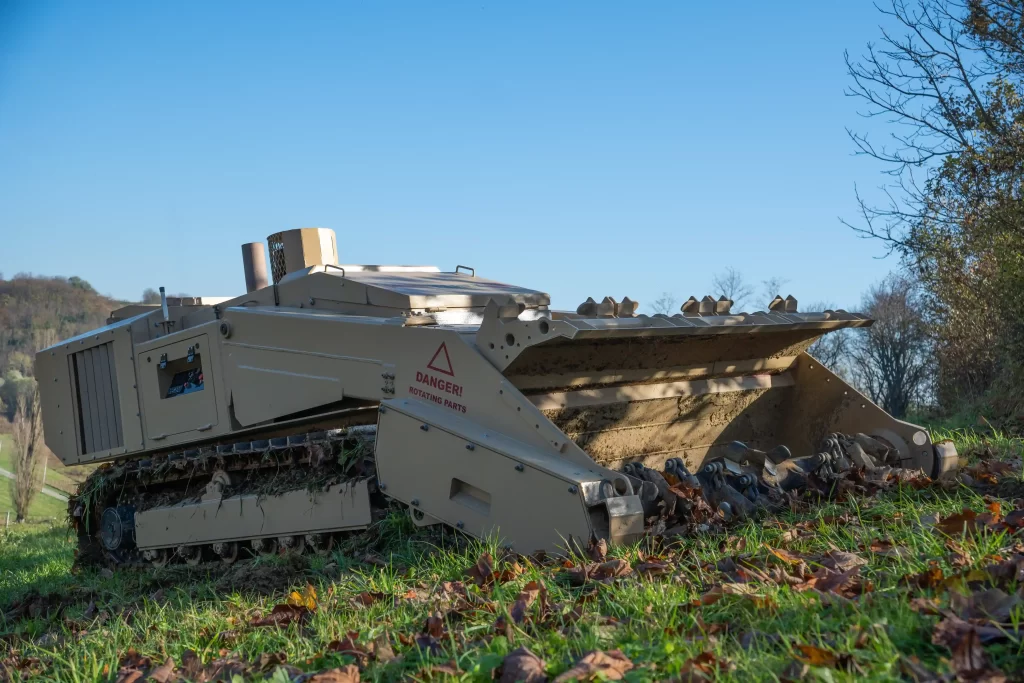

The MINETEREX MT-5 is a highly capable light-category mine clearance and EOD robotic system. Its low profile and robust construction ensure exceptional resistance to all AP mine detonations and UXOs of comparable intensity, and it can also withstand AT mine explosions. The MT-5 has successfully passed rigorous certification testing with outstanding results, confirming its reliability, durability, and superior performance.
Applications
– Mechanical Ground Preparation & Demining
– Mechanical Technical Survey & Clearance
– UXO Clearance for shooting ranges
– Mobility / Counter Mobility
– Route Clearance
Logistics
The MT-5 can be transported easily and cost-effectively, without the need for special permits or escort vehicles.
Air – Transportable by cargo aircraft or via helicopter using designated lifting points.
Sea – Fits seamlessly into a standard 20’ GP container for efficient maritime transport.

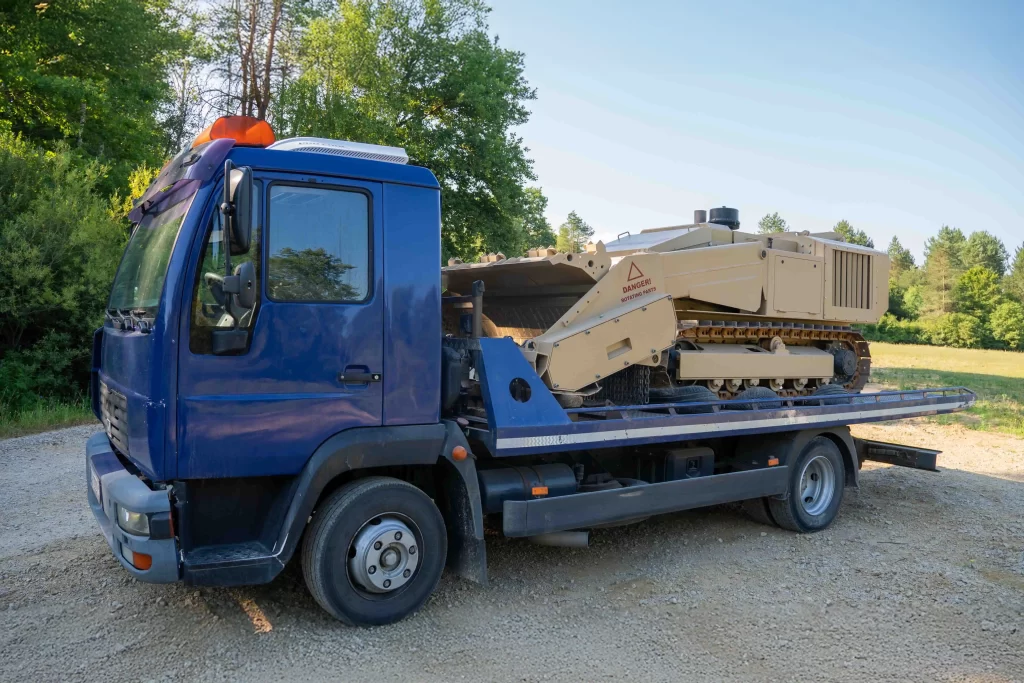

Land – Can be delivered using a standard truck, car-hauler trailer, or tractor-trailer.
Technical data
| Dimensional data | |
|---|---|
| Length | 4500 mm |
| Width | 2200 mm |
| Height | 1750 mm |
| Weight | 6100 kg |
| Engine type | Caterpillar C7.1 DITA |
| Engine power | 205kW / 275 hp |
| Fuel tank | 140 l |
| Demining capacity | Up to 1500 - 2000 m2/h |
| Transport speed | 8 km/h |
| Operational speed | 0,3 - 1,2 km/h |
All technical characteristics are provided for informational purposes only and MINETEREX reserves the right to make changes without notice.
